Why doesn't the relocation of this resistor affect the circuit's total resistance?


Why does moving the 470Ω resistor in these examples have no effect on the total resistance between A and B?

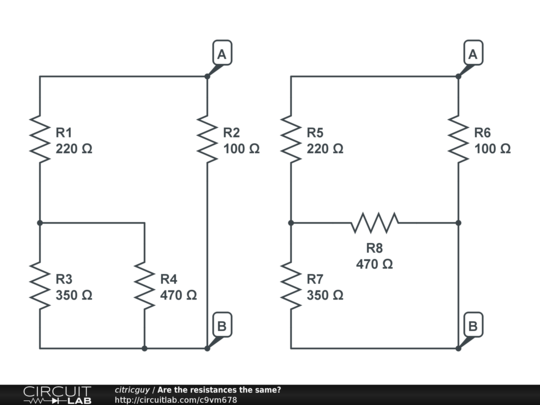

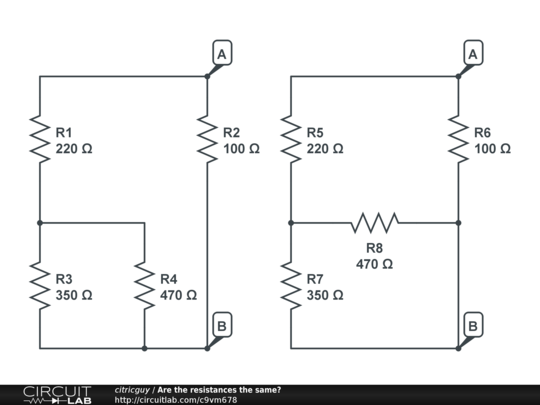

CircuitLab Schematic 9vm678


This is a new question regarding the answer given here by @helloworld992.



Answer



470Ω is connected to node B in either picture.


Wires are assumed ideal conductors. Both circuits are identical. They have the same topology. They are only drawn differently.


-
